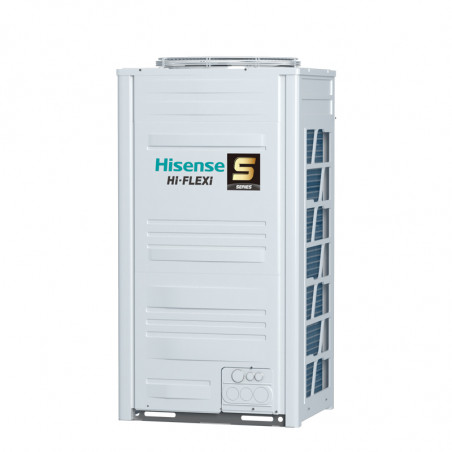

S Series

• Données techniques

• AVWT-76HKFSEB - AVWT-96HKFSEB - AVWT-114HKFSEB

  HP				8HP	10HP	12HP	14HP
  Model				AVWT-76HKSS	AVWT-96HKSS	AVWT-114HKSS	AVWT-136HKSS
  Combination				—	—	—	—
  Power Supply				380-415V 3N~ 50Hz / 60Hz
  Cooling Operation*    1		Rated Capacity	kW	22,4	28,0	33,5	40,0
  		Power Consumption	kW	5,21	7,00	8,65	10,53
  		EER	W/W	4,30	4,00	3,87	3,80
  Heating Operation*	1	Rated Capacity	kW	25,0	31,5	37,5	45,0
  		Power Consumption	kW	5,77	7,59	9,21	11,72
  		COP	W/W	4,33	4,15	4,07	3,84
  Air Flow Rate			m 3/min	183	183	183	200
  Noise level*   2			dB(A)	59	60	62	62
  Cabinet Color*   3				Grayish White
  Compressor Type				Enhanced Vapor Injection Compressor
  Refrigerant Type				R410A
  Gas Line			mm	Φ19.05	Φ22.20	Φ25.40	Φ25.40
  Liquid Line			mm	Φ9.53	Φ9.53	Φ12.70	Φ12.70
  Out Dimension		H	mm	1730	1730	1730	1730
  		W	mm	950	950	950	1210
  		D	mm	750	750	750	750
  Packing Dimension		H	mm	1930	1930	1930	1930
  		W	mm	1015	1015	1015	1275
  		D	mm	790	790	790	790
  Max.number of connectable IDU				13	16	19	23
  Max. Fuse Current			A	25	32	32	40
  Max. Running Current			A	17,2	22,5	23,5	28,6
  Net Weight			kg	224	244	245	297
  Gross Weight			kg	243	263	265	321
  Connection Ratio				50% - 150%
  Compressor Quantity			PC	1	1	1	1
  Condenser Fan Quantity			PC	1	1	1	2
  Height Difference Between		ODUs is Higher Than IDUs	m	50 (90 *4 )
  ODUs and IDUs		ODUs is Lower Than IDUs	m	40 (90 *4)
  Height Difference Between IDUs			m	30
  Operation Range		Cooling	DB	-5°C ~ 52°C *5
  		Heating	WB	-25°C   ~ 16.5°C*5
  Max. Total Piping Length			m	1000
