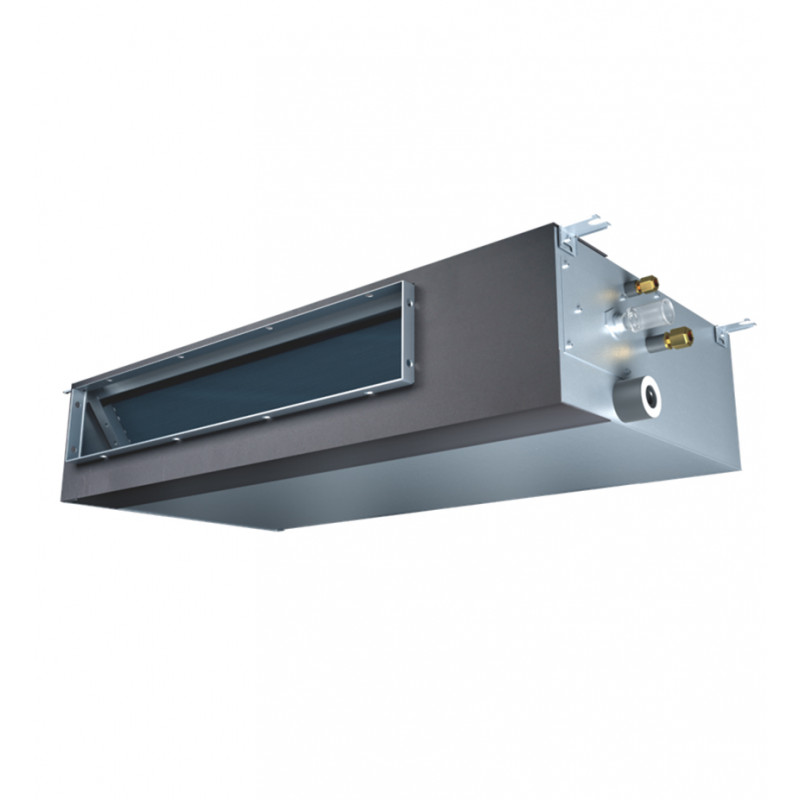

Gainable Plafonnier Extra Plat

• Données techniques




  	AVE-05HDDH	AVE-07HDDH	AVE-09HDDH	AVE-12HDDH	AVE-15HDDH	AVE-19HDDH	AVE-24HDDH
  Power supply	AC 1Φ, 220V-240V/50Hz/60Hz
  Cooling Capacity (kW)	1,7	2,2	2,8	3,6	4,6	5,6	7,1
  Cooling Capacity (Btu/h)	5800	7500	9600	12300	15300	19100	24200
  Heating Capacity (kW)	1,9	2,5	3,2	4	5	6	8
  Heating Capacity (Btu/h)	6500	8500	11300	13600	17300	21100	24300
  Power Input Cooling (W)	30	30	50	50	60	90	90
  Power Input Heating (W)	30	30	50	50	60	90	90
  Sound Pressure dB(A)	28/27/26/ 24/23/21	28/27/26/ 24/23/21	36/32/30 /26/23	35/32/32/ 30/26/23	35/32/30/ 28/25/23	35/32/30/ 28/25/23	38/36/35/ 33/31/24
  Air Flow Rate m³/min	7.0/6.6/6.1 / 5.7/5.3/4.8	7.0/6.6/6.1 / 5.7/5.3/4.8	9.0/8.1/7.3 / 6.7/5.9/5.2	9.0/8.1/7.3 / 5.9/5.2	12.0/10.8/9.4 / 8.1/6.8/5.5	13.5/12.1/11.2 / 10.0/8.8/7.7	18.0/16.1/14.3 / 12.3/10.5/8.7
  External Static Pressure (Pa)	-	-	10/15/30-50	10/15/30-50	10/15/30-50	10/15/30-50	10/15/30-50
  Piping Liquid (mm)	Φ6.35	Φ6.35	Φ6.35	Φ6.35	Φ6.35	Φ6.35	Φ9.53
  Piping Liquid (inch)	(1/4)	(1/4)	(1/4)	(1/4)	(1/4)	(1/4)	(3/8)
  Piping Gas (mm)	Φ12.7	Φ12.7	Φ12.7	Φ12.7	Φ15.88	Φ15.88	Φ15.88
  Piping Gas (inch)	(1/2)	(1/2)	(1/2)	(1/2)	(5/8)	(5/8)	(5/8)
  Condensate Drain	-	-	LD.32	LD.32	LD.32	LD.32	LD.32
  Net Weight (kg)	16	17	17	20	22	24	24
  Gross Weight (kg)	19	20	20	24	26	29	29
  Dimensions External H (mm)	192	192	192	192	192	192	192
  Dimensions External W (mm)	700	700	700	910	1180	1180	1180
  Dimensions External D (mm)	447	447	447	447	447	447	447
  Packaging H (mm)	270	270	270	270	270	270	270
  Packaging W (mm)	925	925	925	1132	1405	1405	1405
  Packaging D (mm)	574	574	574	574	574	574	574
