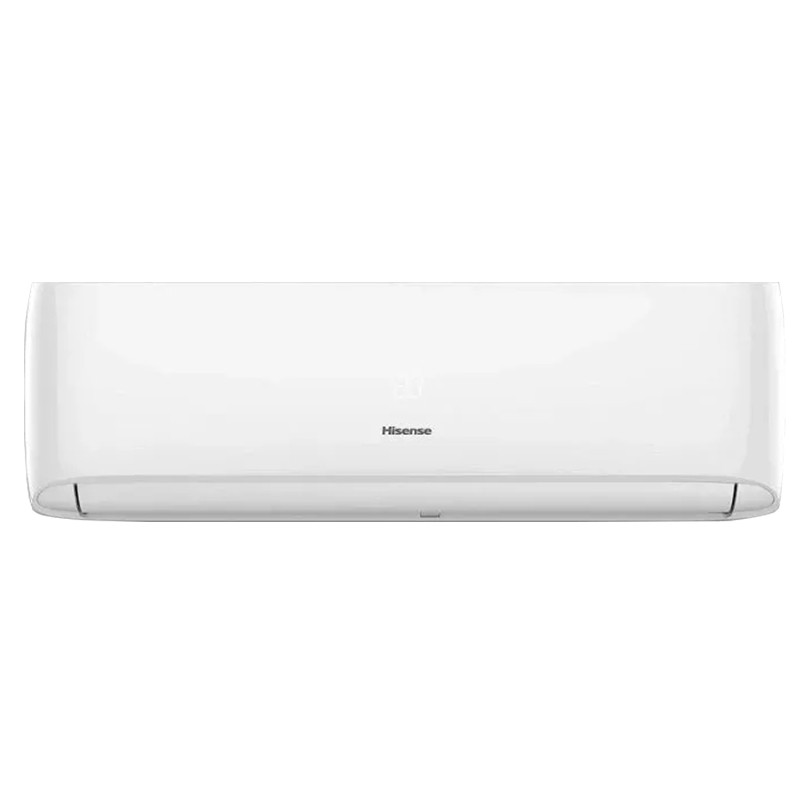

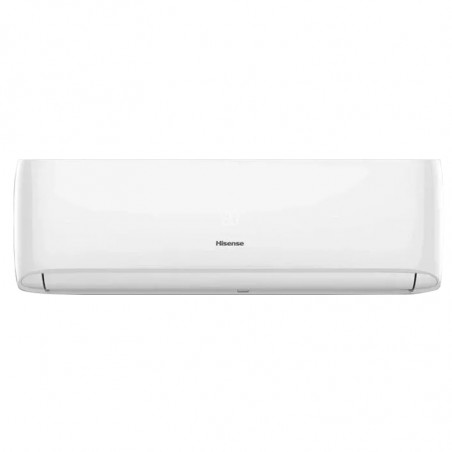

AS-UW

• Données techniques

  Model	AS-09UW (9K)	AS-12UW (12K)	AS-18UW (18K)	AS-24UF (24K)
  Type	Cooling & Heating	Cooling & Heating	Cooling & Heating	Cooling & Heating
  Cooling Capacity (W)	2700 (900–3300)	3300 (900–3900)	5275 (1200–5850)	6500 (2300–7900)
  Heating Capacity (W)	2800 (1100–2800)	3300 (1000–3900)	5570 (1500–6900)	6600 (2100–9000)
  Power Input – Cooling (W)	810 (200–1200)	1025 (260–1500)	1625 (300–2300)	1980 (600–3000)
  Power Input – Heating (W)	760 (300–1200)	870 (300–1500)	1590 (300–2300)	1920 (600–3300)
  Moisture Removal (L/h)	0.9	1.2	2	2.5
  Air Circulation (CMH max)	550	620	1100	1150
  Refrigerant	R410A	R410A	R410A	R410A
  Refrigerant Volume (g)	670	790	1340	1700
  Indoor Noise Level – High (dB(A))	39	39	44	46
  Indoor Noise Level – Low (dB(A))	30	30	36	40
  Outdoor Noise Level (dB(A))	54	53	56	58
  Voltage / Frequency / Phase	220–240V~, 50Hz, 1P	220–240V~, 50Hz, 1P	220–240V~, 50Hz, 1P	220–240V~, 50Hz, 1P
  Rated Current – Cooling (A)	3.6	4.6	7.3	8.5
  Rated Current – Heating (A)	3.3	3.9	7.1	8.4
  Compressor Type	Rotary	Rotary	Rotary	Rotary
  Net Dimensions (mm)	800×270×214	870×270×214	977×315×236	1148×315×236
  Net Weight (kg)	8.5	9	12.5	14.5
  Packing Dimensions (mm)	830×335×260	900×335×260	1040×390×315	1210×390×315
  Gross Weight (kg)	10	11	14.5	17
  Net Dimensions (mm)	715×482×240	715×540×240	810×585×280	860×650×310
  Net Weight (kg)	24	27	39	47
  Packing Dimensions (mm)	830×530×315	830×588×340	940×630×385	995×730×445
  Gross Weight (kg)	26	26.5	42	51
  Liquid Pipe (inch)	01-avr	01-avr	01-avr	03-août
  Gas Pipe (inch)	03-août	03-août	01-févr	05-août
  Max Connection Pipe Length (m)	15	15	15	15
  Max Height Difference (m)	5	5	5	5
  Operating Temperature Range (°C)	–5 / 50	–5 / 50	–5 / 50	–5 / 50
