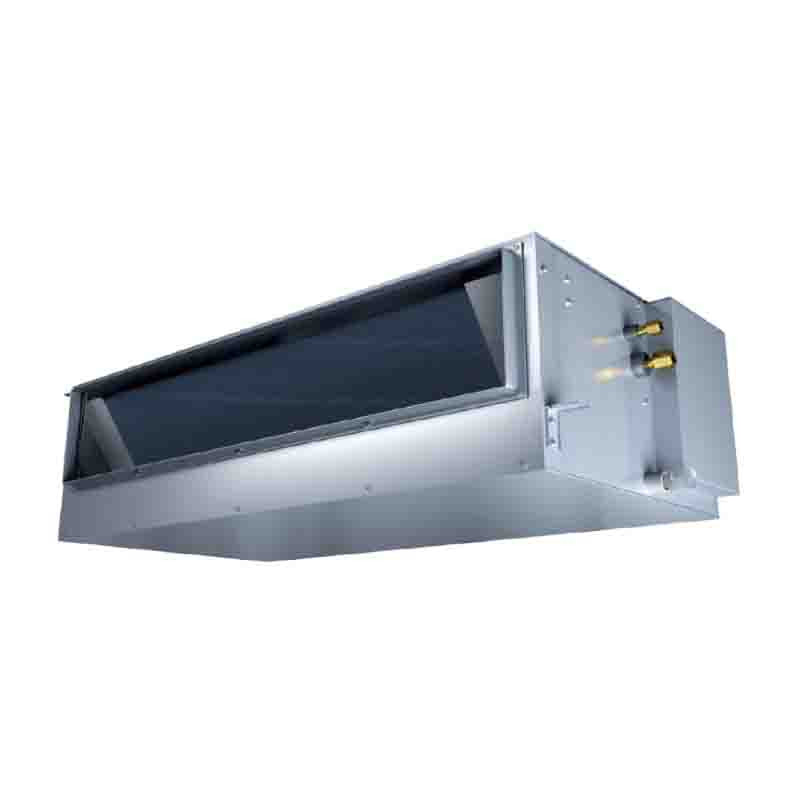

Gainable Plafonnier (HSP)

• Données techniques

  Indoor Unit Type			Ceiling Ducted Type (High/Low Static Pressure)
  Model Power Supply	1Φ,220-240V/50Hz		AVD-07HCFCH	AVD-09HCFCH	AVD-12HCFCH	AVD-15HCFCH	AVD-19HCFCH
  			AVD-07HCFCL	AVD-09HCFCL	AVD-12HCFCL	AVD-15HCFCL	AVD-19HCFCL
  Nominal Cooling Capacity *1)		kW	2,2	2,8	3,6	4,5	5,6
  		kcal/h	1900	2400	3100	3900	4800
  		Btu/h	7500	9600	12300	15400	19100
  Nominal Cooling Capacity *2)		kW	2,3	2,9	3,8	4,6	5,8
  		kcal/h	2000	2500	3300	4000	5000
  		Btu/h	7800	9900	13000	15700	19800
  Cooling Power Consumption H-(high static pressure)		kW	0,10	0,10	0,13	0,13	0,14
  Cooling Power Consumption L-(low static pressure)		kW	0,06	0,06	0,11	0,11	0,09
  Nominal Heating Capacity		kW	2,5	3,2	4,0	5,0	6,3
  		kcal/h	2200	2800	3400	4300	5400
  		Btu/h	8500	10900	13700	17100	21600
  Heating Power Consumption H-(high static pressure)		kW	0,10	0,10	0,13	0,13	0,14
  Heating Power Consumption L-(low static pressure)		kW	0,06	0,06	0,11	0,11	0,09
  Sound Pressure Level(Overall Scale H-(high static pressure)		dB(A)	32/27/25	32/27/25	35/32/26	35/32/26	36/35/30
  Sound Pressure Level(Overall Scale) L-(low static pressure)		dB(A)	27/23/21	27/23/21	34/30/25	34/30/25	32/30/26
  Outer Dimensions Height		mm	270	270	270	270	270
  		(in.)	(10-5/8)	(10-5/8)	(10-5/8)	(10-5/8)	(10-5/8)
  Width		mm	650+75	650+75	650+75	650+75	900+75
  		(in.)	(25-9/16+2-15/16)	(25-9/16+2-15/16)	(25-9/16+2-15/16)	(25-9/16+2-15/16)	(35-7/16+2-15/16)
  Depth		mm	720	720	720	720	720
  		(in.)	(10-5/8)	(10-5/8)	(10-5/8)	(10-5/8)	(10-5/8)
  Net Weight		kg	25	25	25	25	30
  		(lbs.)	(55)	(55)	(55)	(55)	(66)
  Refrigerant		-	R410A(Nitrogen-Charged for Corrosion-Resistance)
  Indoor Fan Air Flow Rate (Hi/Me/Lo)		m3/h	540/420/360	540/420/360	720/600/510	720/600/510	900/780/600
  		(cfm)	(318/247/212)	(318/247/212)	(424/353/300)	(424/353/300)	(530/459/353)
  External Pressure(AVD-*HCFCH) *3)		Pa	50(80)	50(80)	50(80)	50(80)	50(80)
  External Pressure(AVD-*HCFCL) *3)		Pa	30	30	30	30	30
  Piping Connection		-	Flare-Nut Connection (with Flare Nuts)
  Liquid Line		mm	Φ6.35	Φ6.35	Φ6.35	Φ6.35	Φ6.35
  		(in.)	(1/4)	(1/4)	(1/4)	(1/4)	(1/4)
  Gas Line		mm	Φ12.7	Φ12.7	Φ12.7	Φ12.7	Φ15.88
  		(in.)	(1/2)	(1/2)	(1/2)	(1/2)	(5/8)
  Condensate Drain		-	VP25	VP25	VP25	VP25	VP25
  Approximate Packing Measurement		m3	0,30	0,30	0,30	0,30	0,38
