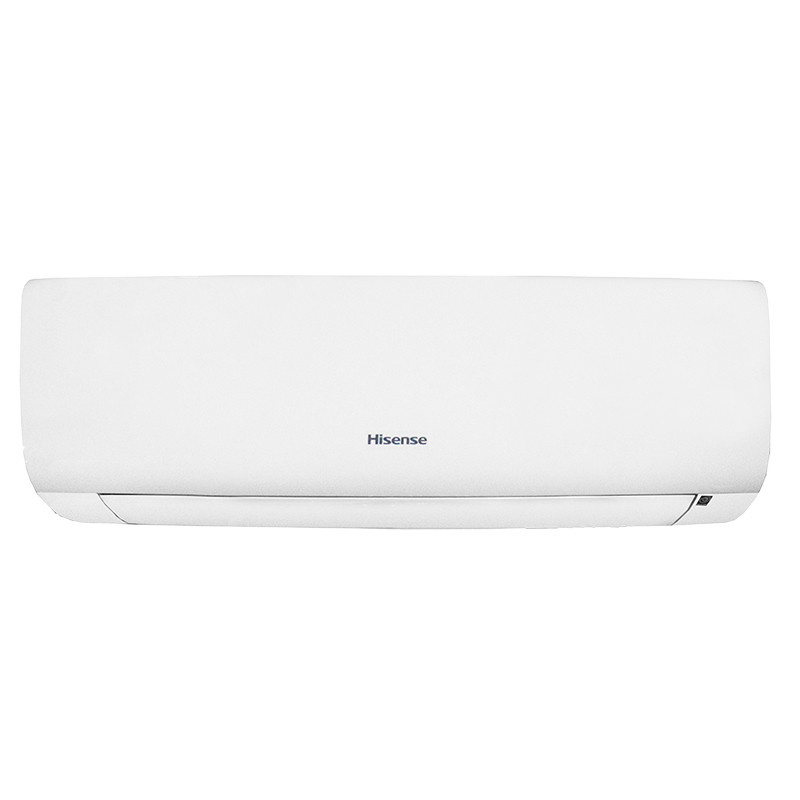

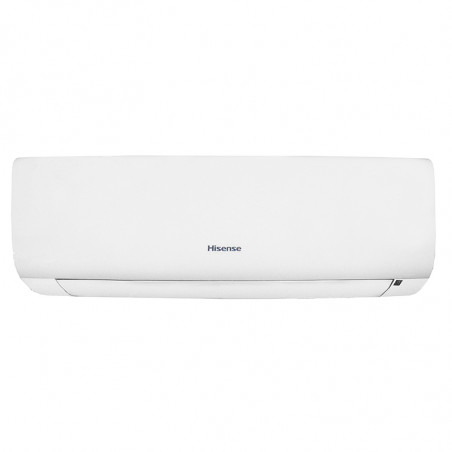

AS-HW

• Données techniques

  Model	AS-09HW (9K)	AS-12HW (12K)	AS-18HW (18K)	AS-24HW (24K)
  Type	Cooling & Heating	Cooling & Heating	Cooling & Heating	Cooling & Heating
  Cooling Capacity (W)	2640	3300	5000	6500
  Heating Capacity (W)	2640	3150	5000	6500
  Power Input – Cooling (W)	820	1020	1540	2025
  Power Input – Heating (W)	775	920	1430	1800
  Moisture Removal (L/h)	0.9	1.2	1.5	1.8
  Air Circulation (CMH Max)	550	660	950	1200
  Refrigerant	R410A	R410A	R410A	R410A
  Refrigerant Volume (g)	730	680	1250	1630
  Indoor Noise Level High (dB(A))	38	39	43	45
  Indoor Noise Level Low (dB(A))	34	35	38	40
  Outdoor Noise Level (dB(A))	52	53	54	56
  Voltage / Frequency / Phase	220–240V~, 50Hz, 1P	220–240V~, 50Hz, 1P	220–240V~, 50Hz, 1P	220–240V~, 50Hz, 1P
  Rated Current – Cooling (A)	3.7	4.5	6.9	9
  Rated Current – Heating (A)	3.5	4	6.4	8
  LRA (A)	20	25	38	46.3
  Compressor Type	Rotary	Rotary	Rotary	Rotary
  Liquid Pipe (inch)	45748	45748	45748	45872
  Gas Pipe (inch)	45872	45689	45689	45874
  Max Pipe Length (m)	15	15	15	15
  Max Height Difference (m)	5	5	5	5
  Indoor Unit Dimensions (mm)	850×270×208	850×270×208	960×315×235	1131×315×235
  Outdoor Unit Dimensions (mm)	715×482×240	715×540×240	810×585×280	860×650×310
  Indoor Net Weight (kg)	8	8.5	12.5	14.5
  Outdoor Net Weight (kg)	26	27	39	47
  Indoor Packing Dimensions (mm)	900×335×260	900×335×260	1022×380×302	1220×400×310
  Outdoor Packing Dimensions (mm)	830×530×315	830×600×335	940×630×385	995×720×420
  Indoor Gross Weight (kg)	9.5	11	14.5	17
  Outdoor Gross Weight (kg)	28	29.5	43	52
  Operating Temp Range (°C)	–5 / 48	–5 / 48	–5 / 48	–5 / 48
